TEST BENCH
COMMON RAIL TEST BENCH
NT1010 test bench can be used to test Common Rail Injector and Pump.
Function:
1. test common rail pump(include HP0 pump,the pump with 2 ZME metering units)
2. test common rail injector(BOSCH,DENSO,SIEMENS,DELPHI,CUMMINS,CAT,etc, include CUMMINS ISG/XPI injector).
3. Test 1 piece piezo injector。
4.Test 4 pin (BOSCH CRIN4) injector
5. test the injector's inductance and resistance
6. Injector coding can be generated, including Bosch IQA / IMA / ISA,Denso 16/22/24/26/28/30/32QR, Delphi I2C / I3C, Siemens IIC and Cummins XPI
7.Injector AHE test, atomization test, opening pressure test, etc.
8. Online remote assistance and system upgrade
Optional function:
1. Test Response Time(BIP) for common rail injector
2. Test CAT 320D pump
3. Test HP5/HP6 pump
Test interface---New test software
New function!!!
Real-time curve of the injector driving current
The test plan is consistent with the original data, and the test accuracy reaches the original factory standard.
|
Step Name |
Description |
|
LEAK |
Injector leak test |
|
WARM |
Warm up |
|
VL |
Full load |
|
VL(R) |
Full load fuel return |
|
EM |
Emissions |
|
LL |
Idle |
|
VE |
Preliminary injection |
|
VE(R) |
Preliminary injection fuel return |
|
VE2 |
Preliminary injection (High rail pressure) |

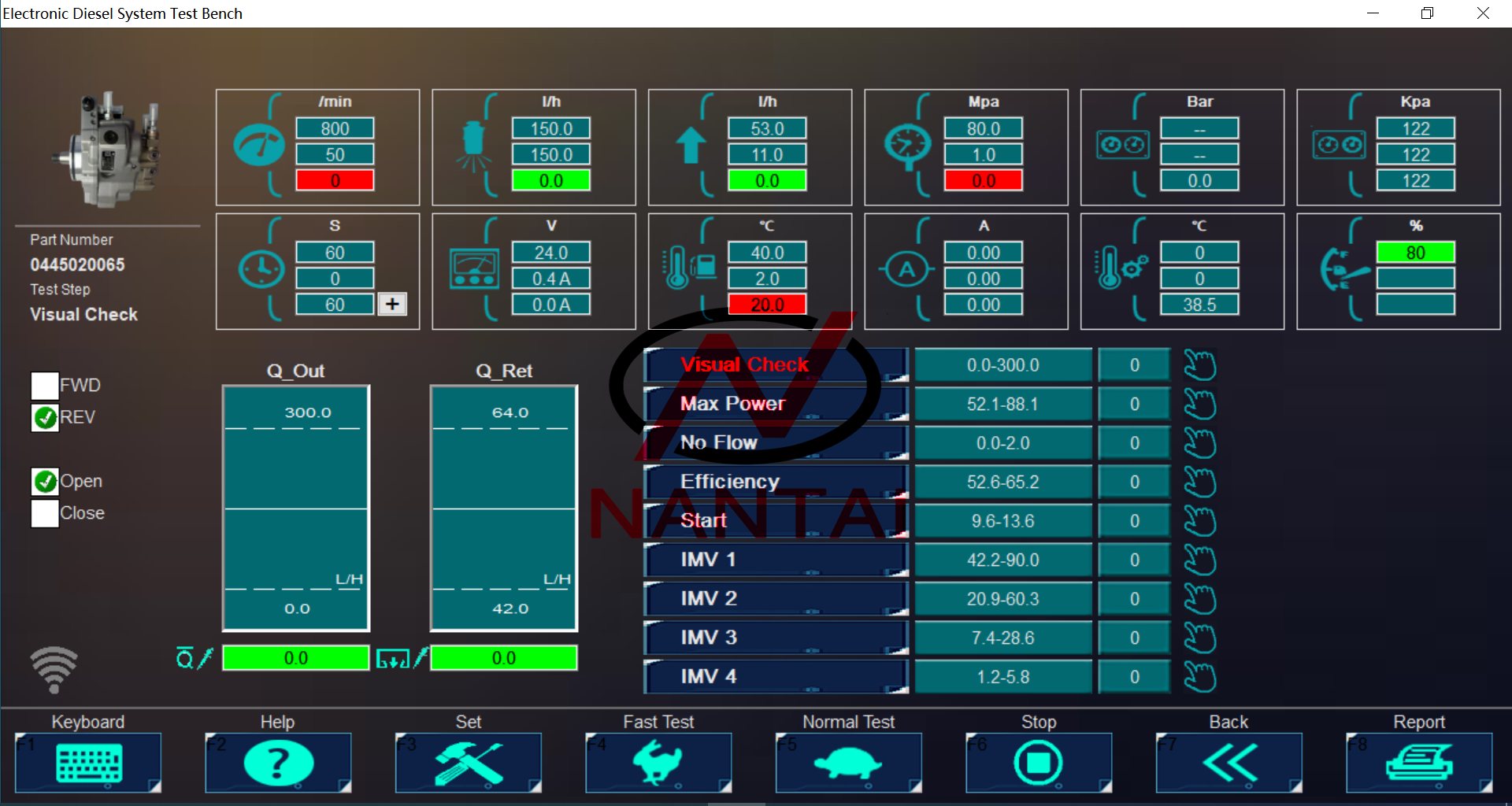

Common rail pump test
|
Step Name |
Description |
|
Max Power |
Maximum horsepower |
|
No Flow |
Zero pump flow |
|
Efficiency |
Efficiency |
|
Start |
Start |
|
IMV 1-4 |
Flow of metering unit under different currents |
Contact information：
NANTAI Automotive Technology Co.,Ltd
Whatsapp/Wechat/Viber : +86 15650091113
